SPECIFICATIONS

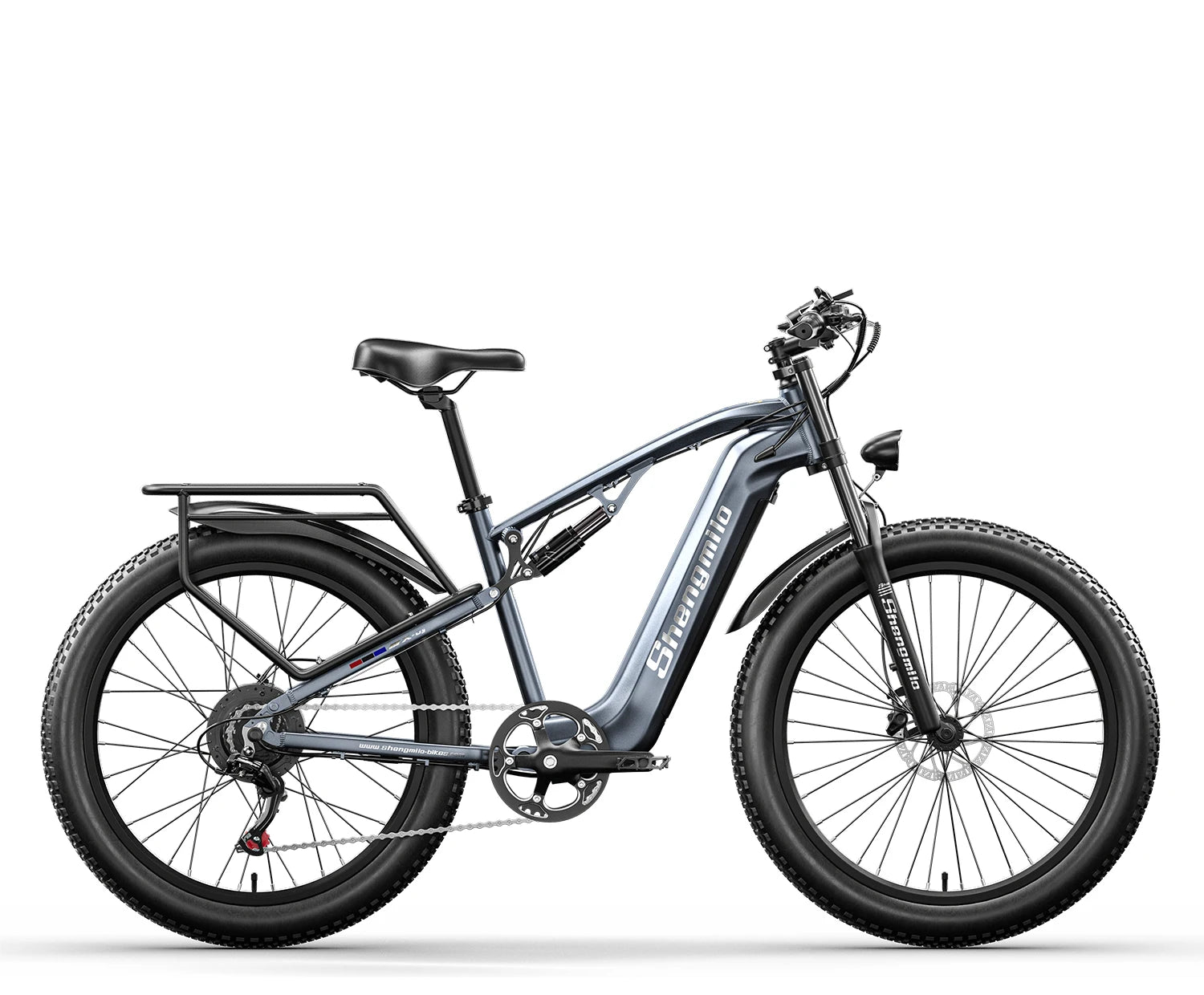

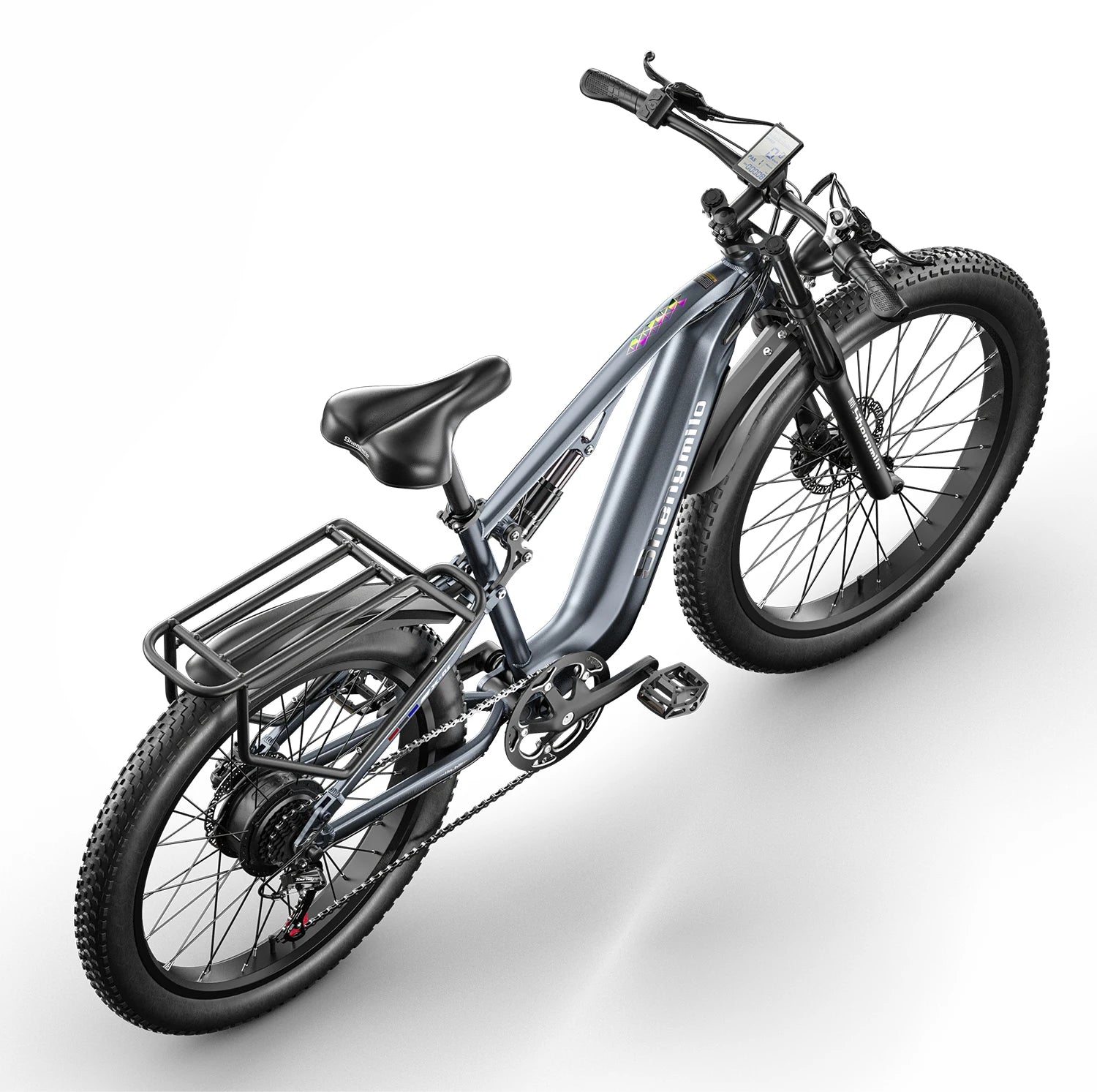

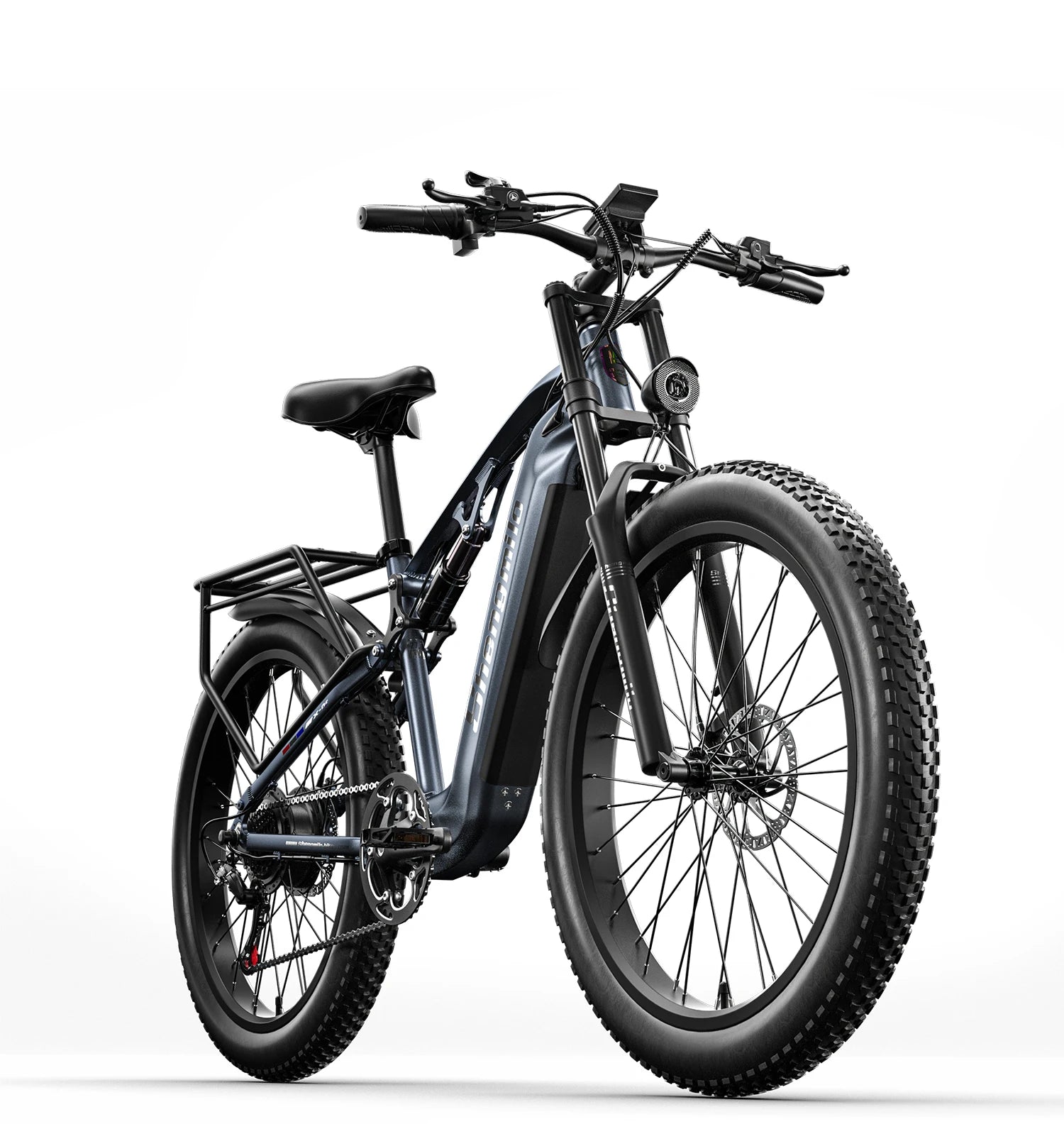

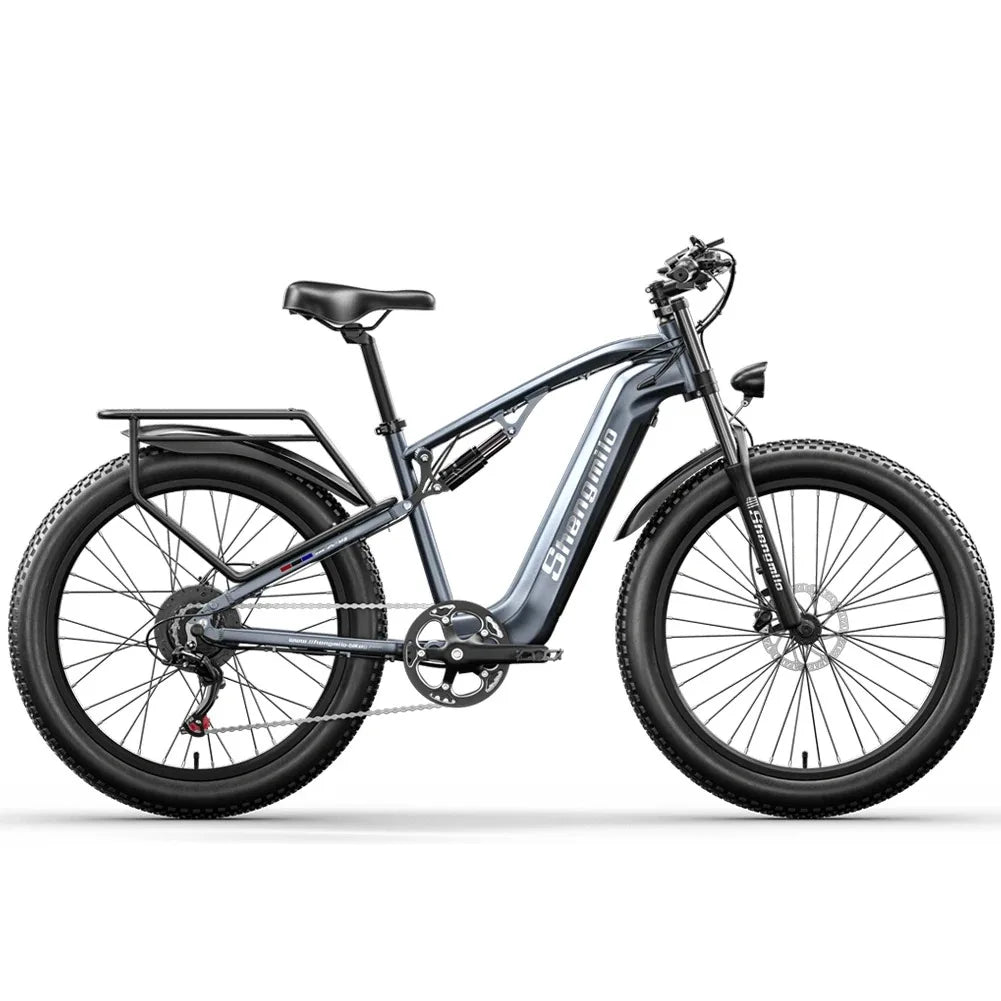

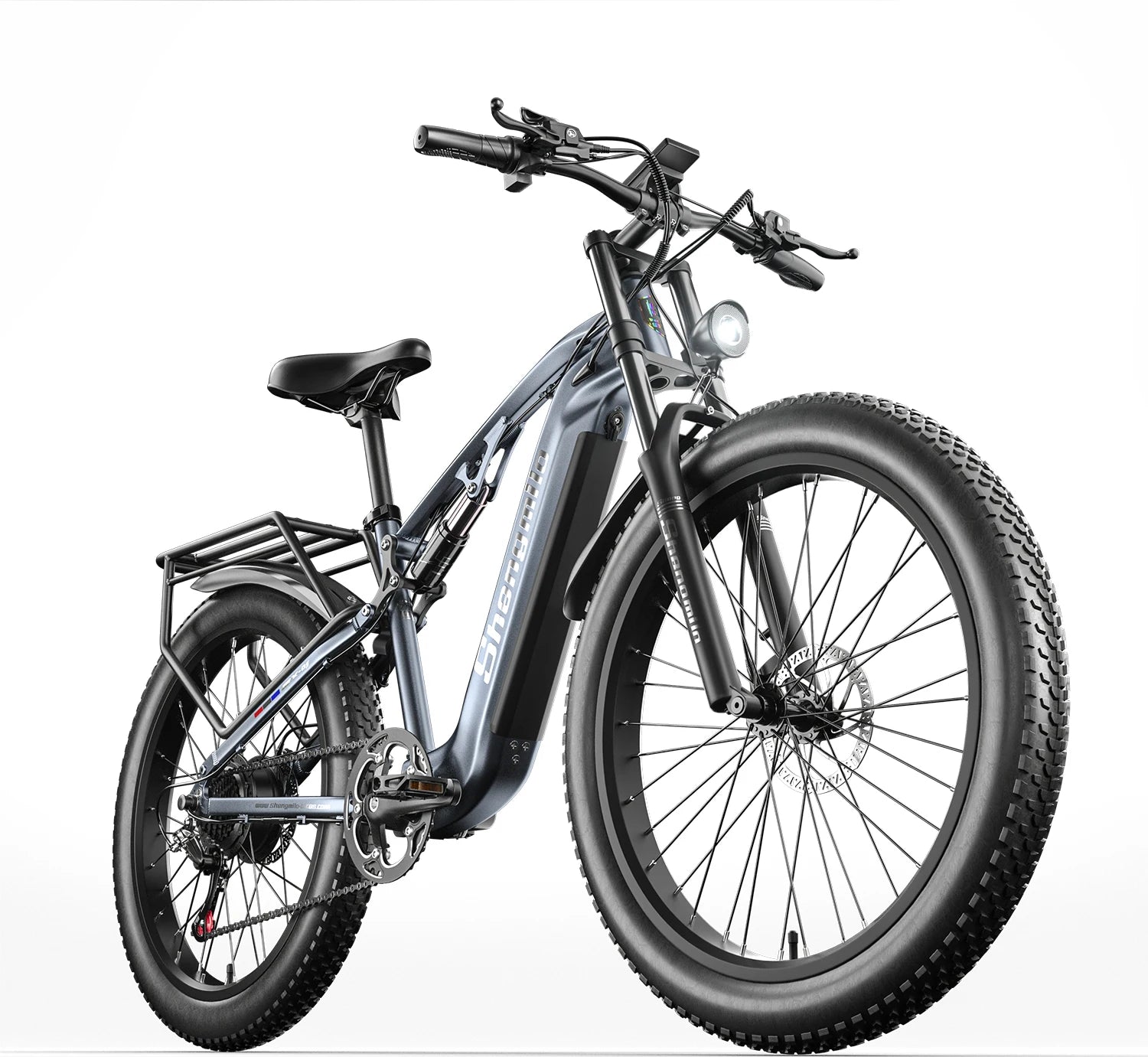

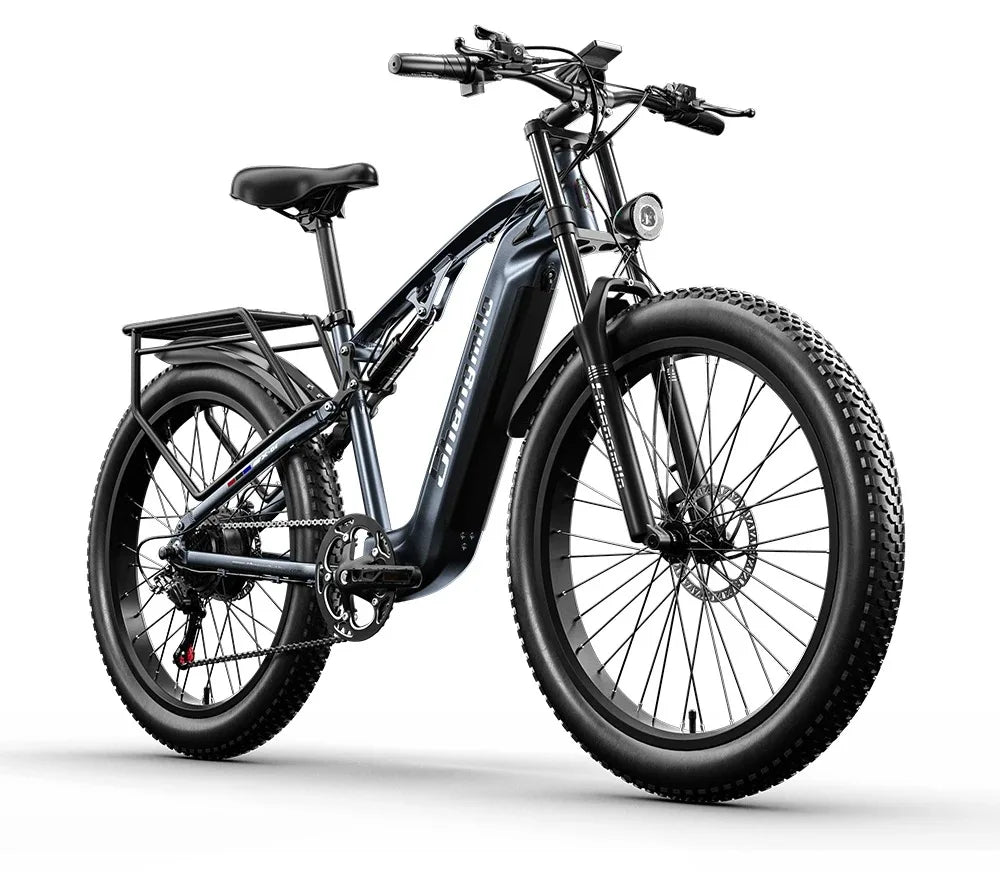

The Shengmilo MX05 is a robust and versatile electric mountain bike designed to handle various terrains with ease. Below are its key specifications:

Motor and Performance:

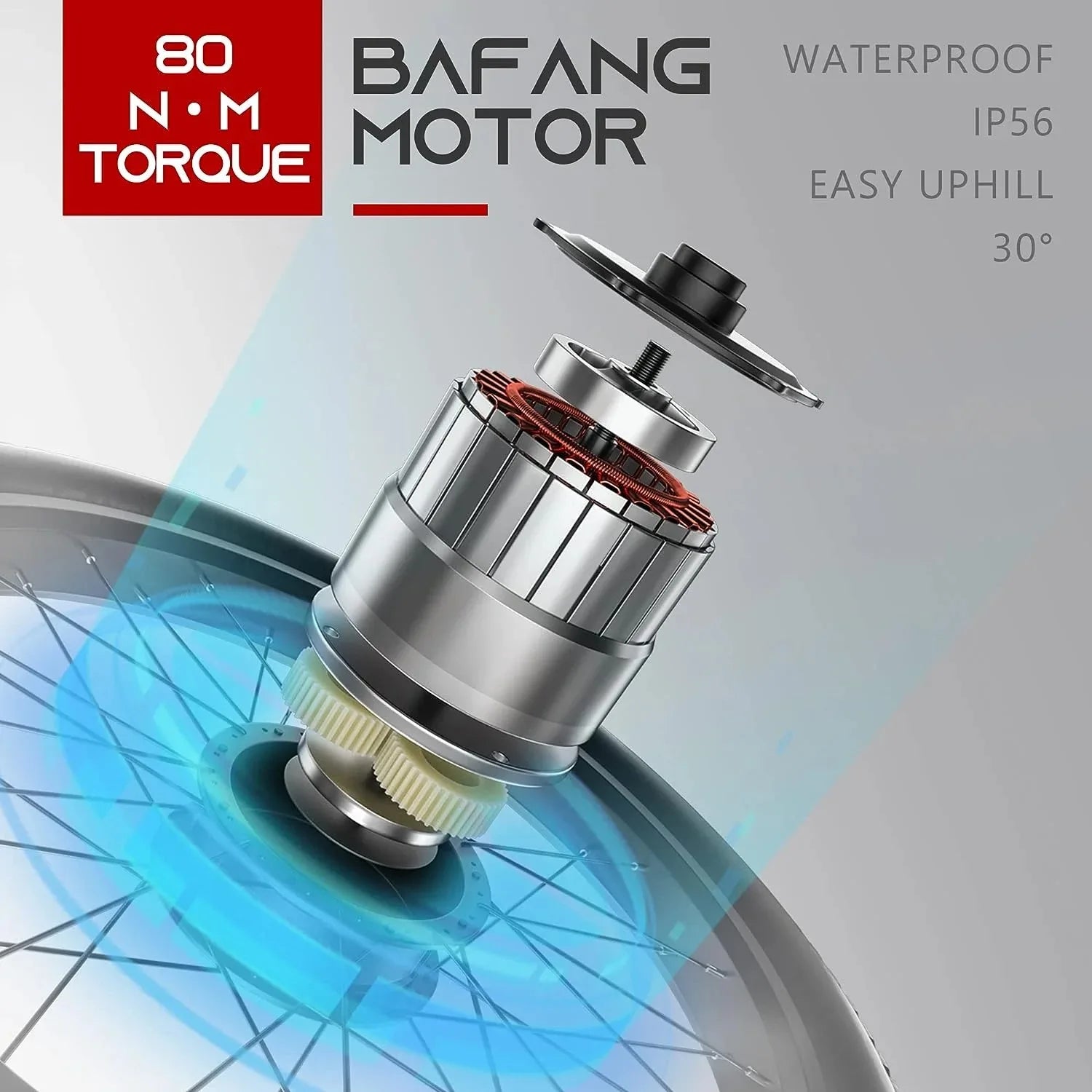

• Motor: 48V 500W Bafang brushless motor with a peak power of 1000W
• Torque: 80 N·m
• Top Speed: 25 km/h
• Climbing Ability: Capable of handling inclines up to 35 degrees

Battery and Range:

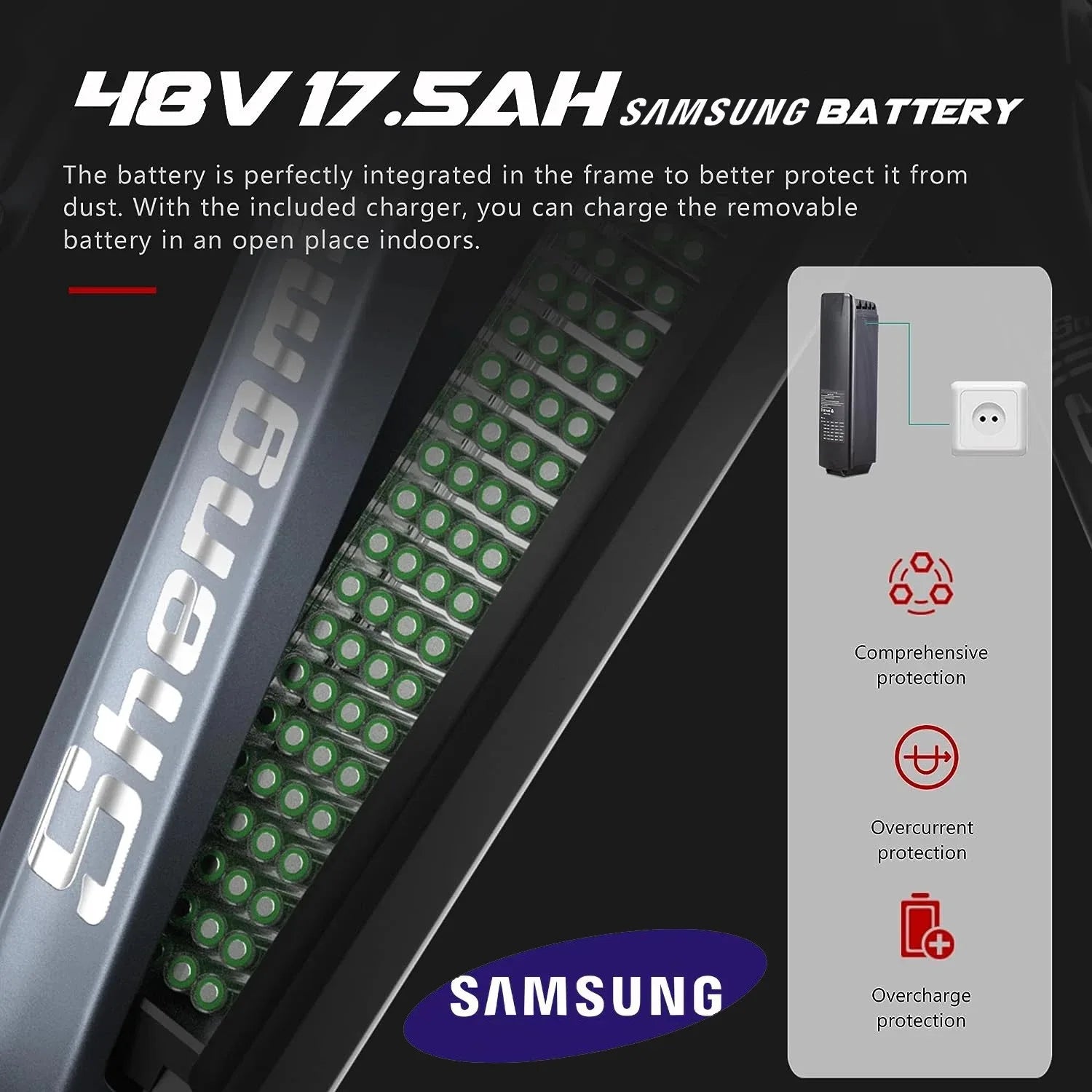

• Battery: 48V 17.5Ah Samsung lithium-ion battery
• Charging Time: Approximately 6-8 hours
• Range:
  • Throttle Mode: 40-50 km
  • Pedal Assist Mode: 80-90 km

Frame and Dimensions:

• Material: 6061 aluminum alloy
• Wheel Size: 26 inches
• Tire Size: 26 x 3.0 inches
• Bike Dimensions: 180 cm (length) x 45 cm (width) x 114 cm (height)
• Weight: Approximately 35 kg
• Maximum Load Capacity: 180 kg
• Suitable Rider Height: 170 cm to 200 cm

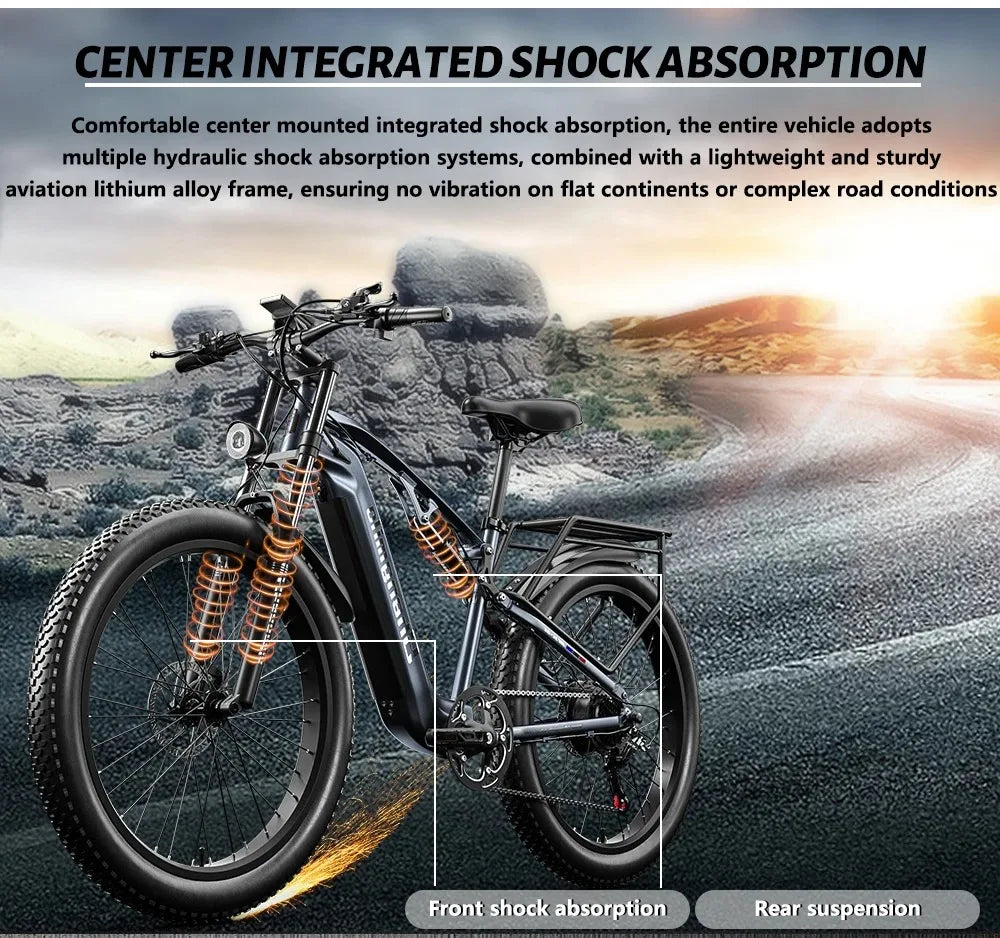

Suspension and Brakes:

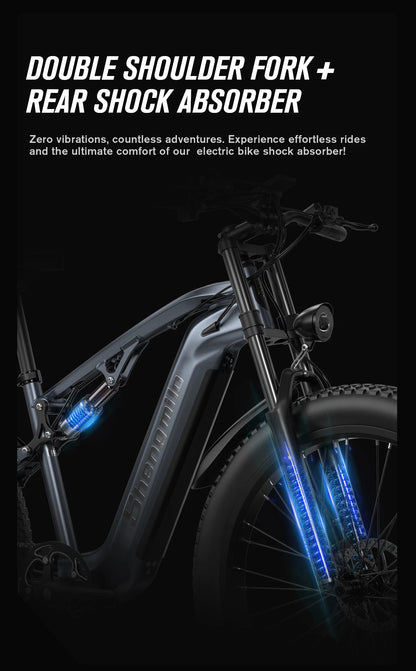

• Front Suspension: Double shoulder front fork
• Rear Suspension: Rear shock absorber

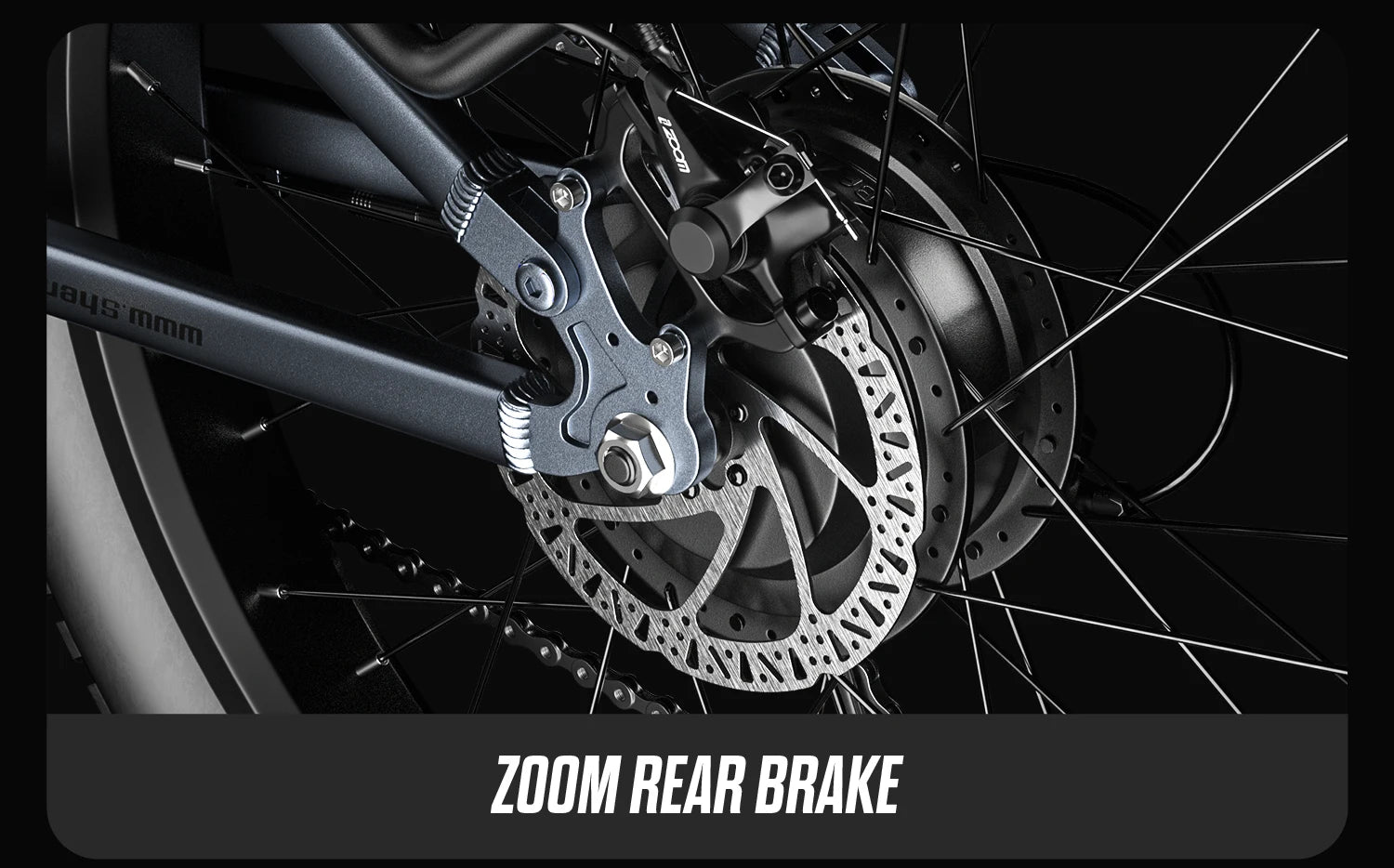

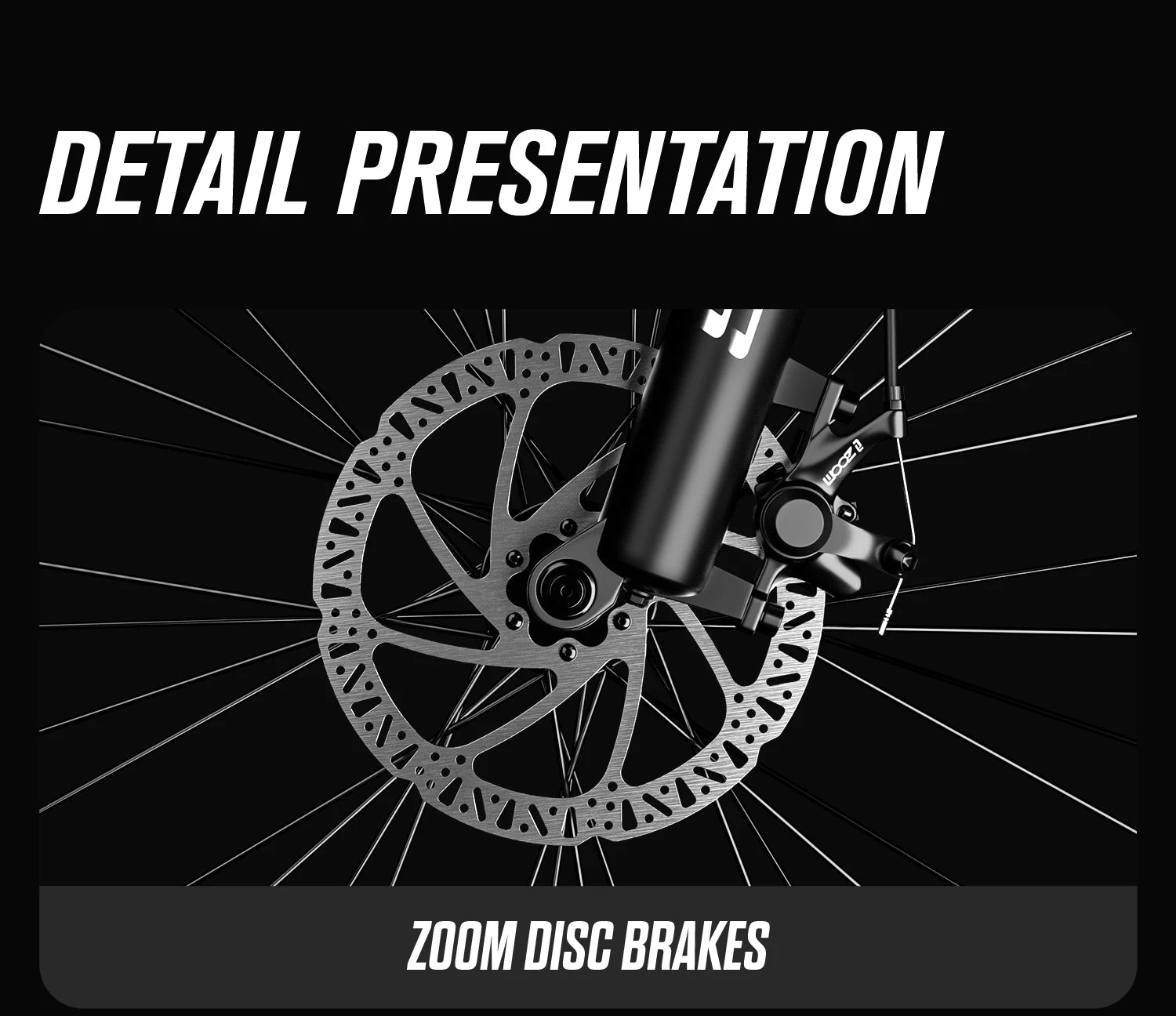

• Brakes: Front and rear hydraulic disc brakes with power-off function

Additional Features:

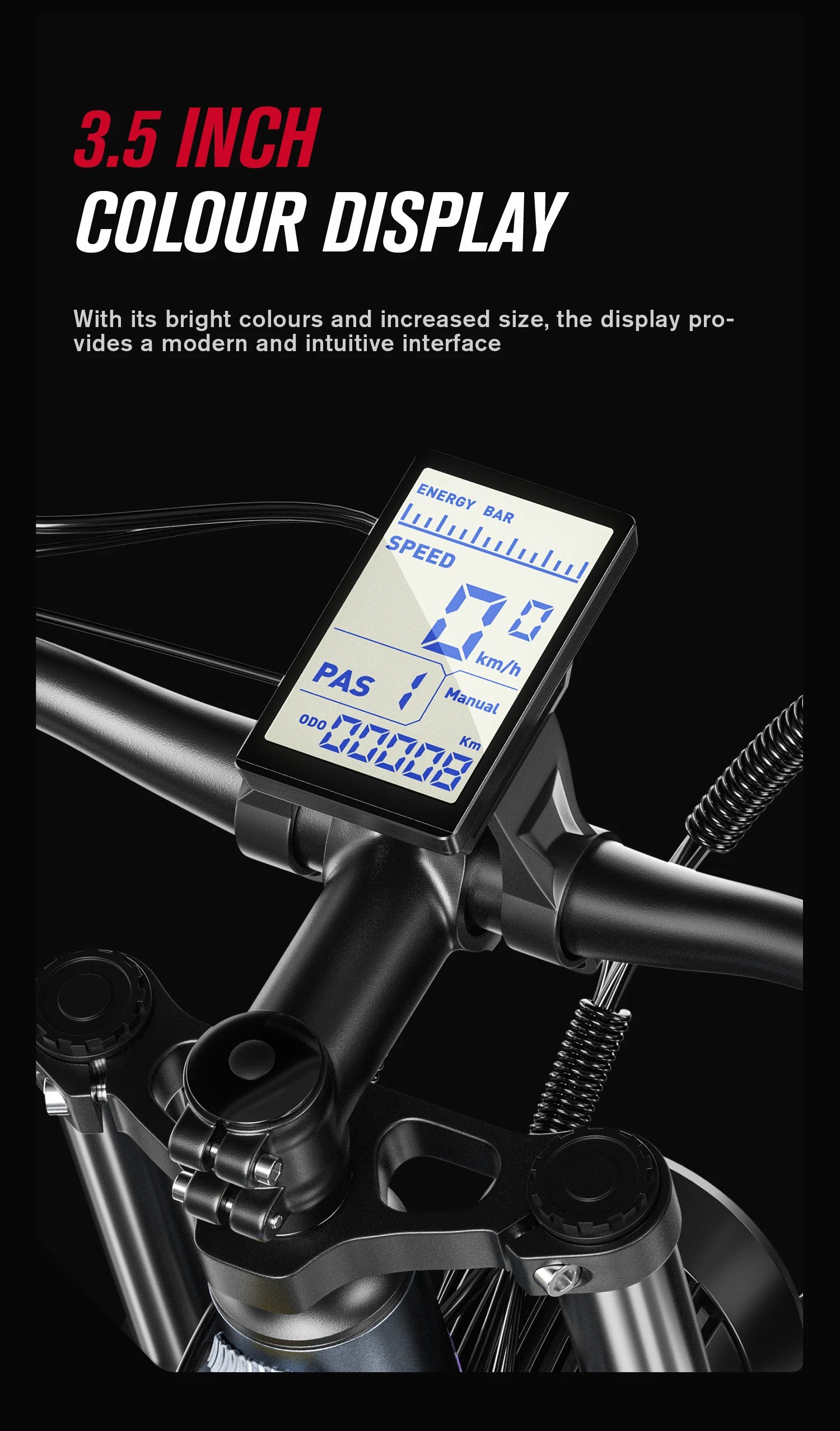

• Display: Smart LCD screen showing speed, assistance level, battery indicator, and mileage

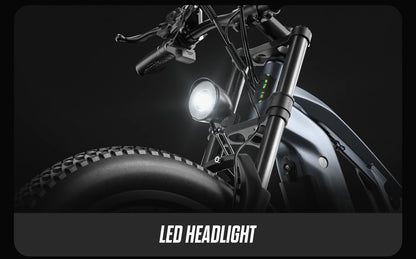

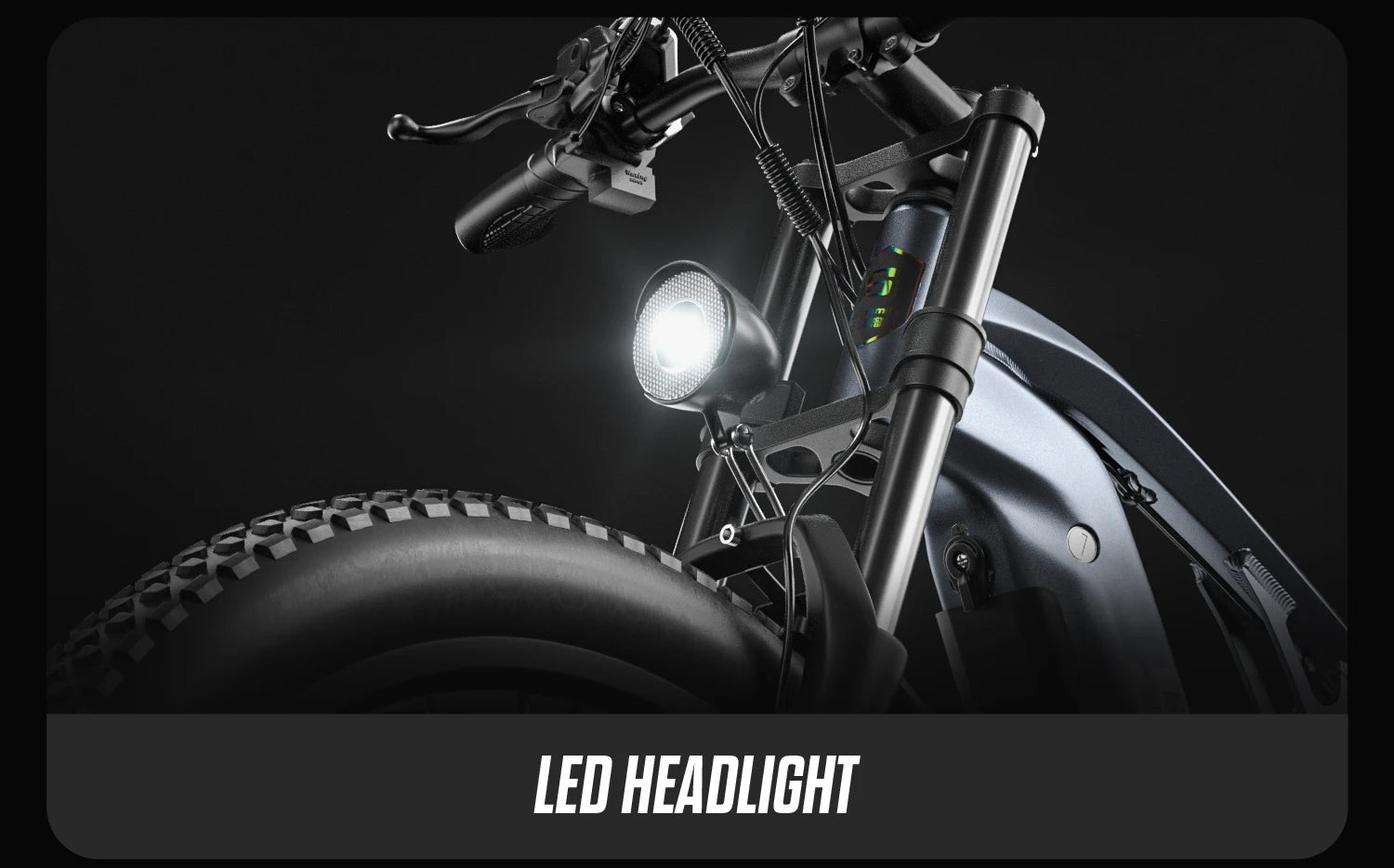

• Lighting: High-luminance headlight and warning tail light for enhanced visibility

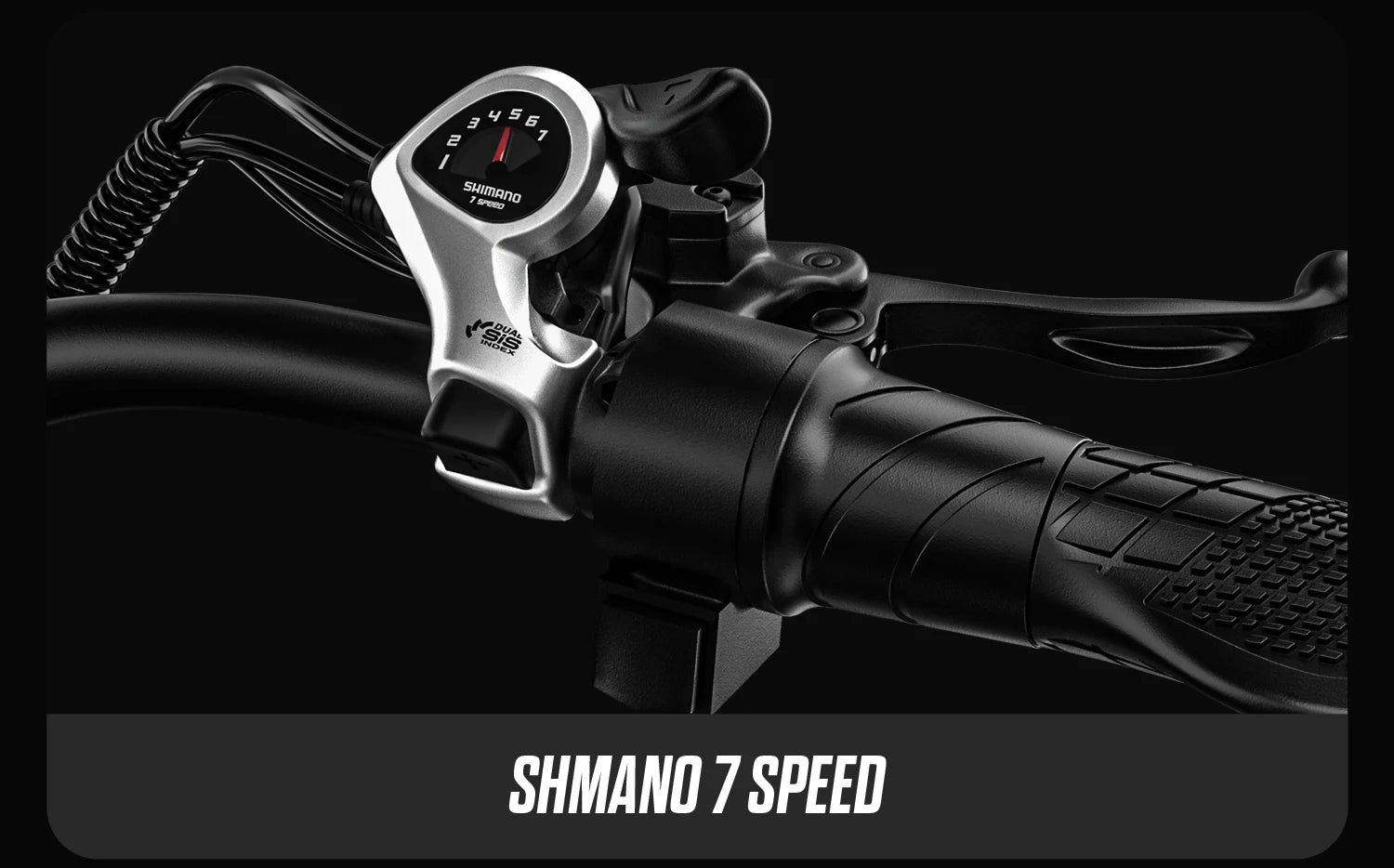

• Gears: Shimano 7-speed transmission system
• Waterproof Rating: IPX54, ensuring durability in various weather conditions

The Shengmilo MX05 combines powerful performance with practical features, making it an excellent choice for both daily commutes and adventurous rides.
