SPECIFICATIONS

Belicore 36V Lithium Battery

Key Specifications:

• Brand: Belicore
• Certification: RoHS
• Type: Lithium Battery
• Voltage: 36V
• Capacity: 10Ah / 10.5Ah

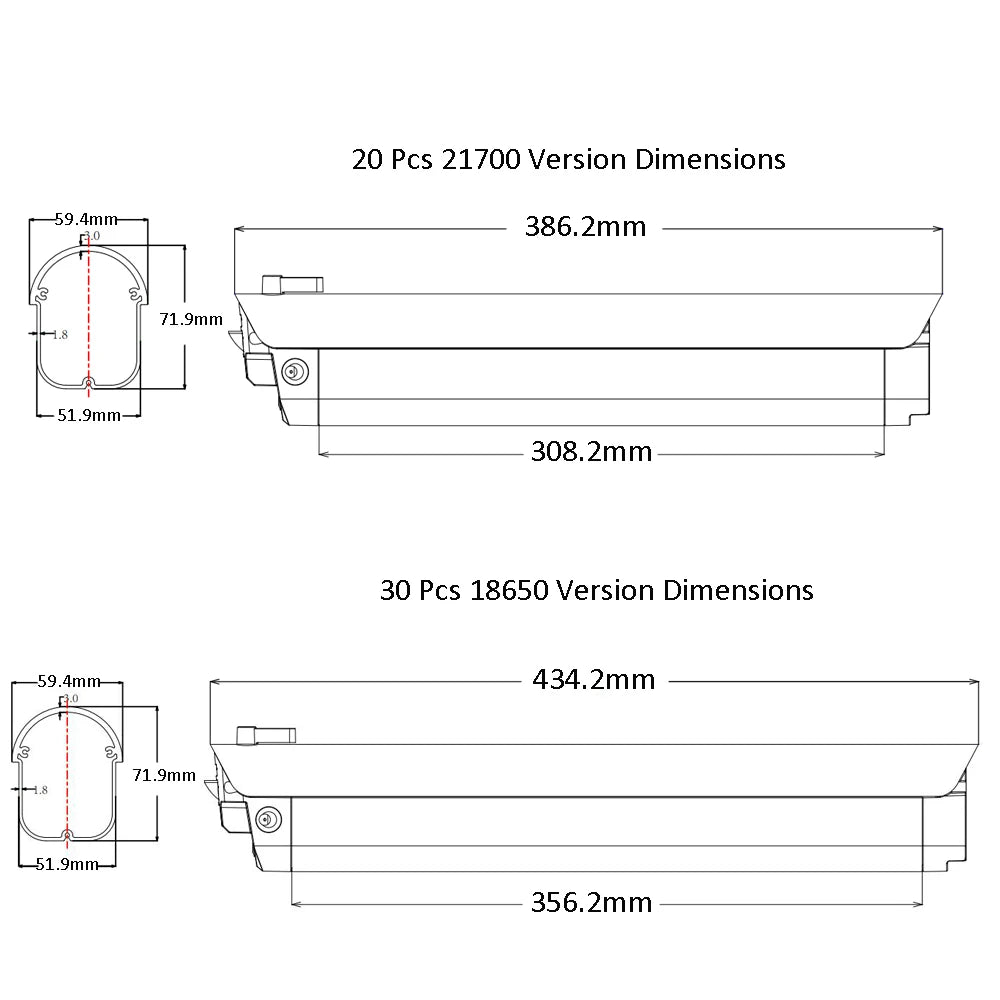

• Dimensions:

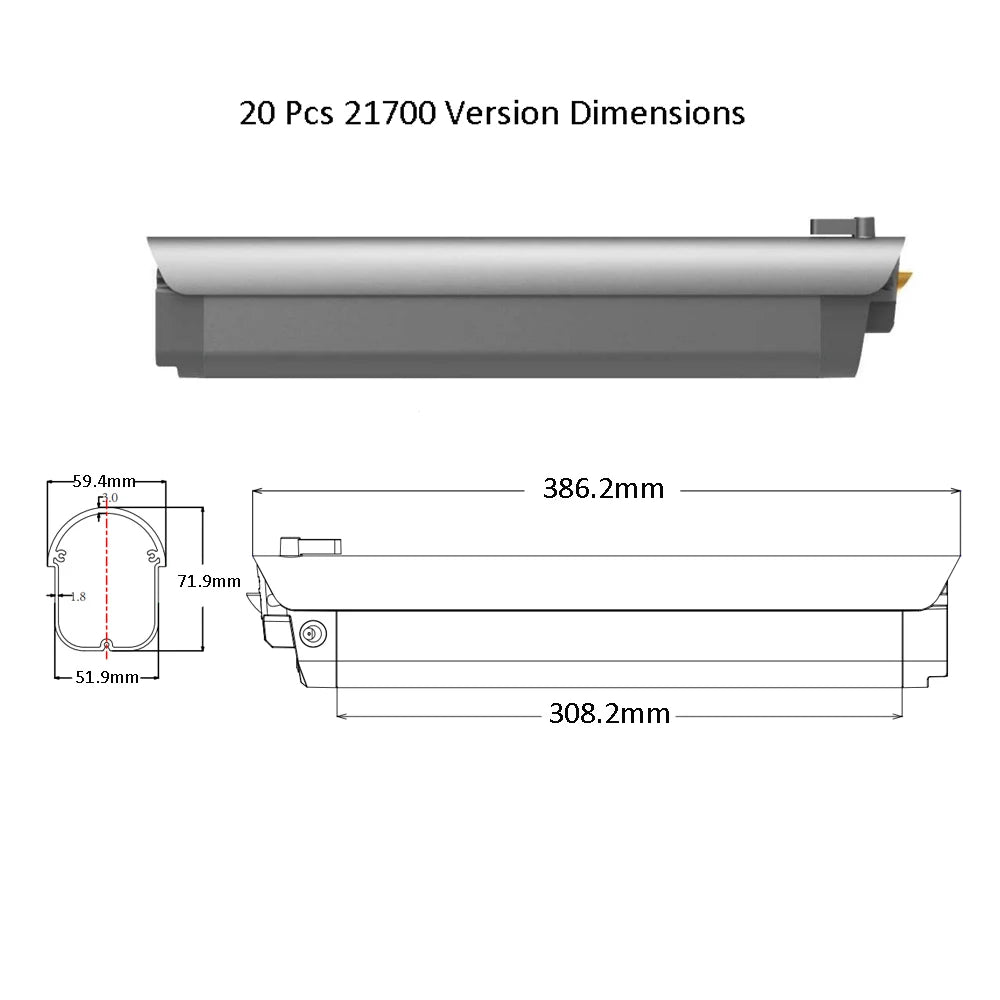

  • 71.9 x 59.4 x 386.2 mm (for 10Ah)

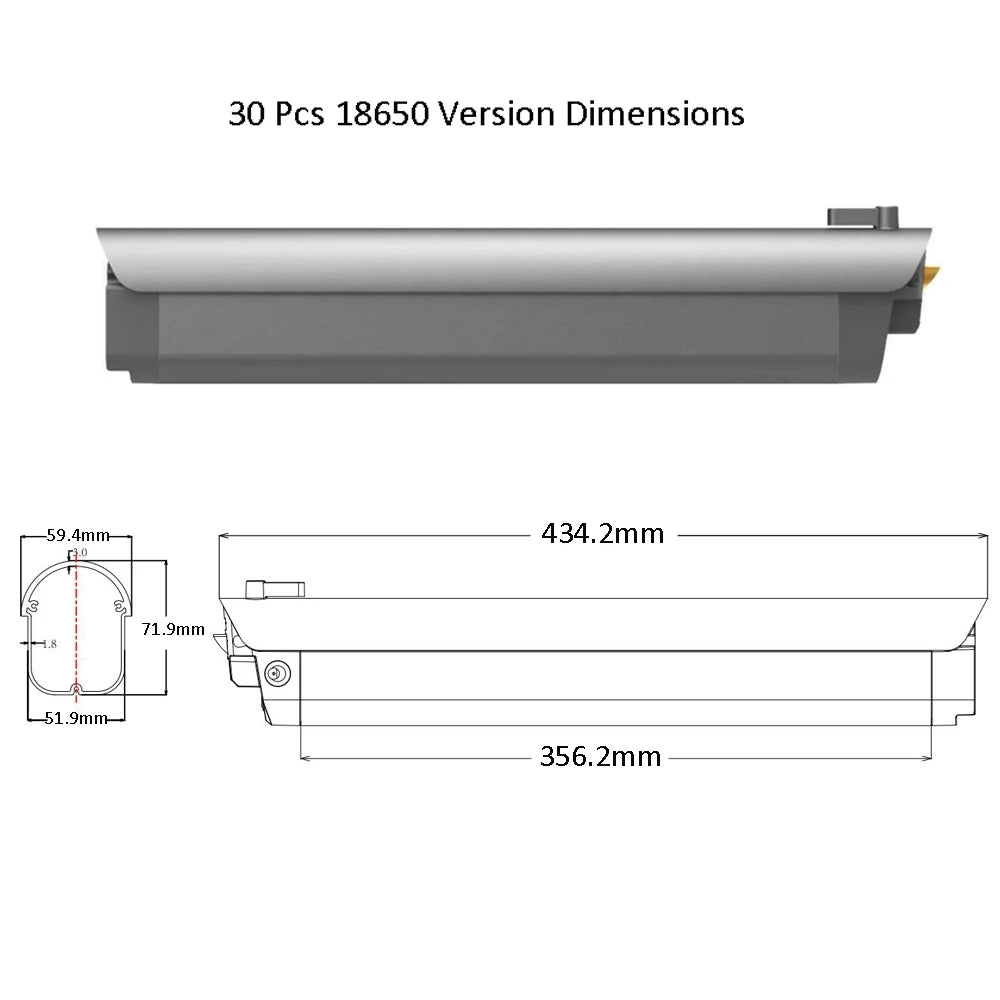

  • 71.9 x 59.4 x 434.2 mm (for 10.5Ah)

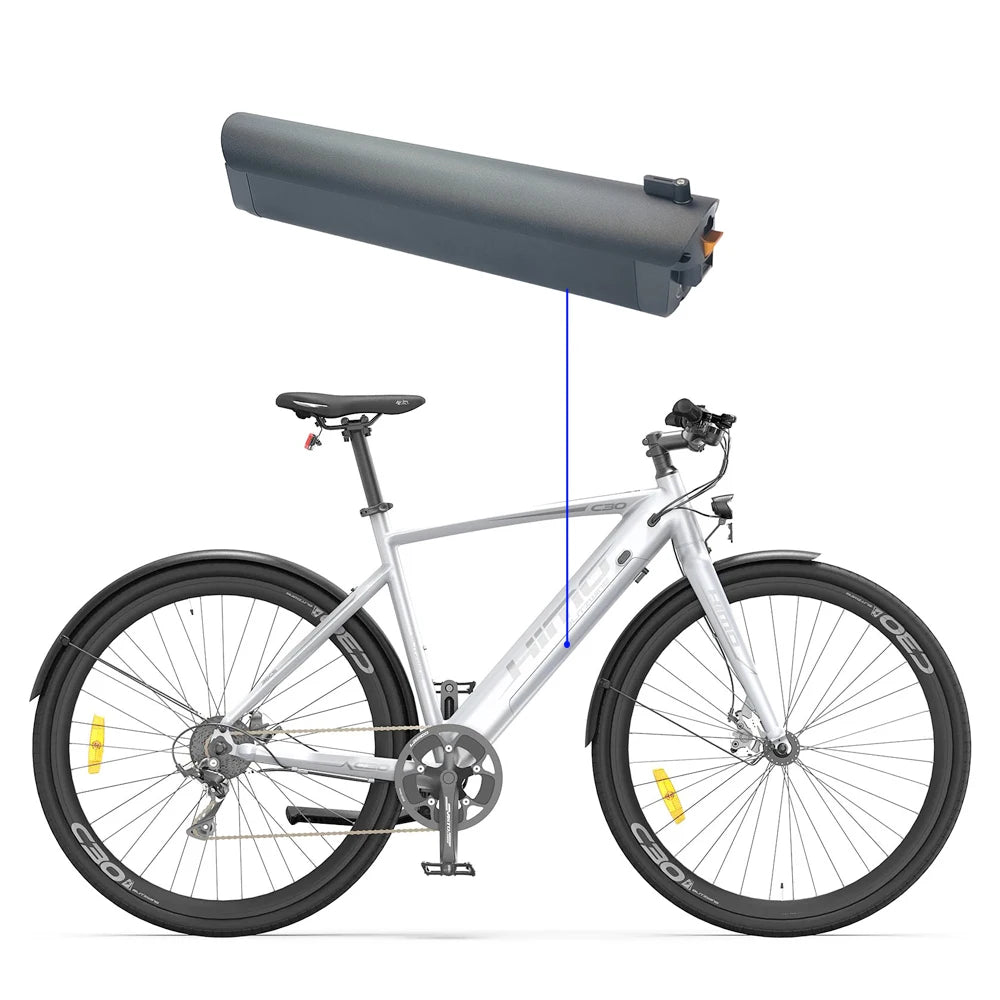

• Install Position: Semi-Hidden Down Tube
• Compatible Motor: 36V 250W, 350W, 500W
• Weight: Approx 2.0 kg - 2.2 kg

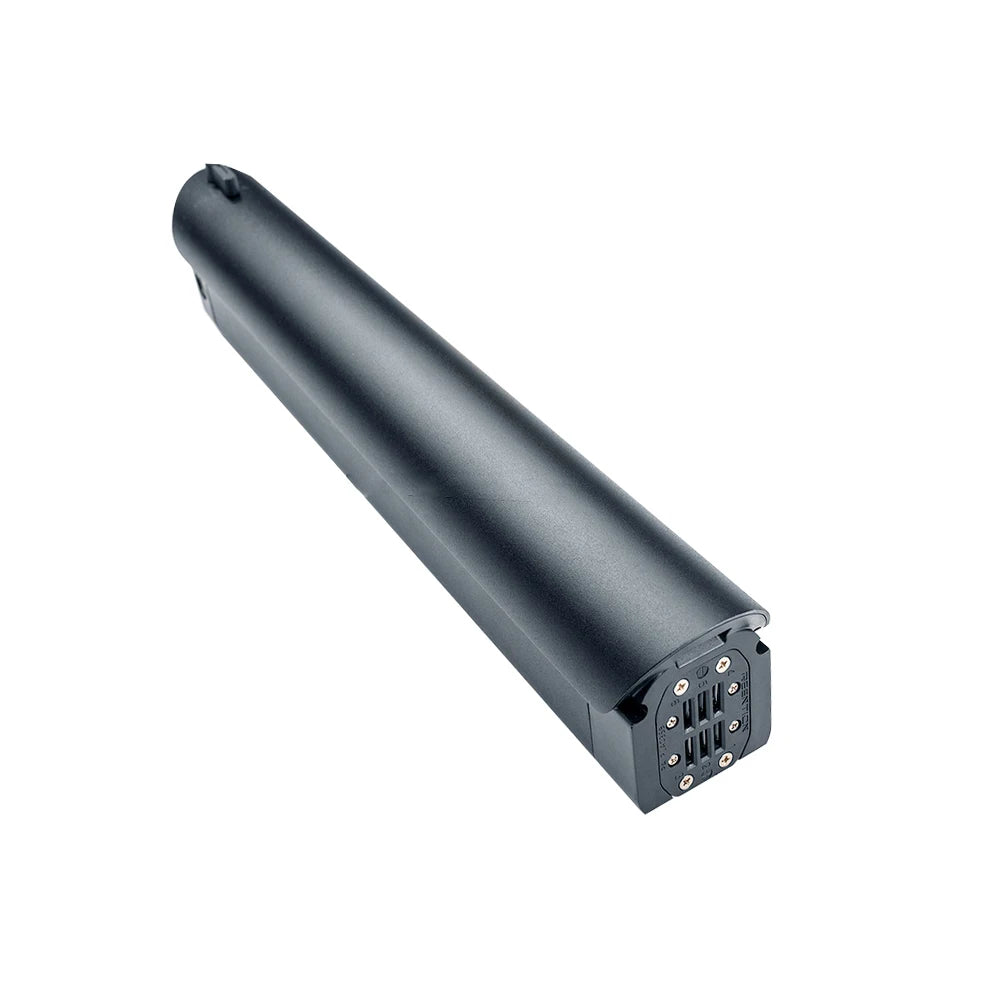

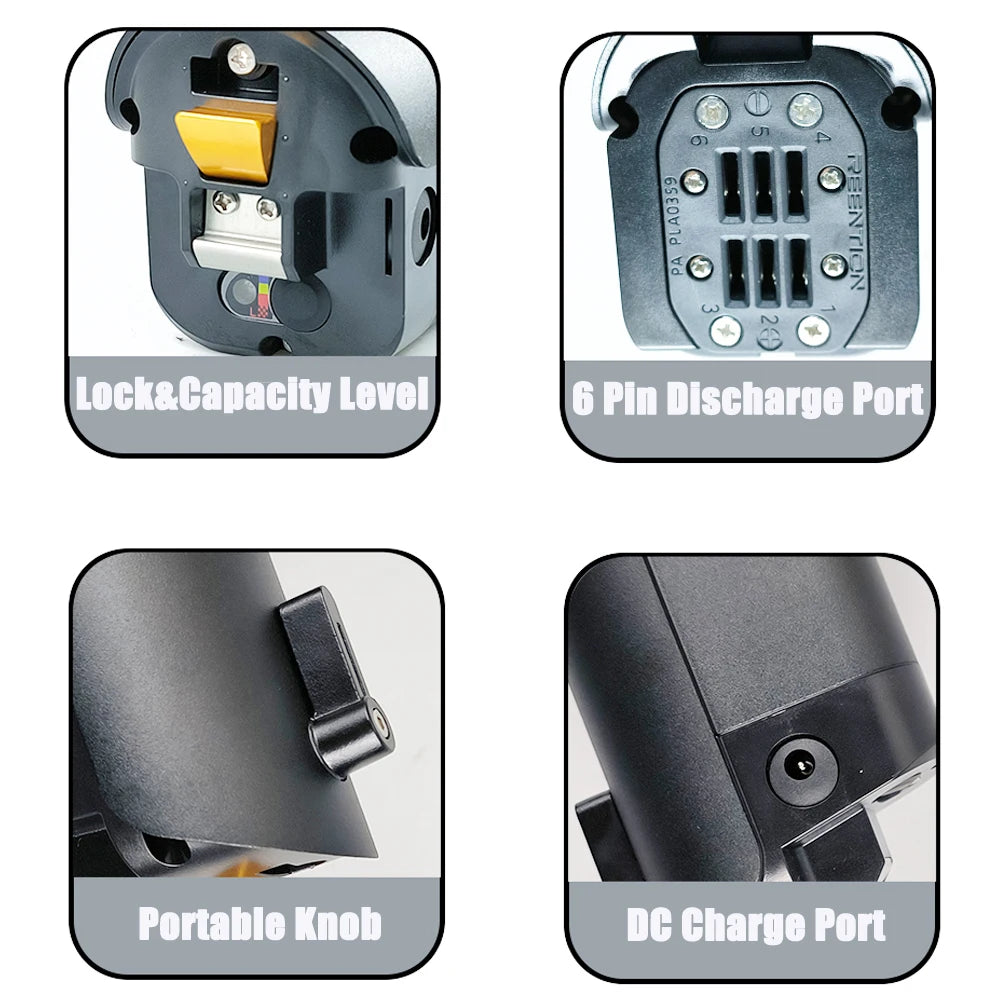

• Power Connector: 6 Pin
• Charger: 42V 2A
• 5V USB: None
• Warranty: 18 months

Performance Features:

• Capacity Options: Available in 10Ah and 10.5Ah, providing flexibility based on your range and power needs.
• Voltage Compatibility: Designed for use with 36V motors, making it suitable for a range of e-bike models.
• Installation: Semi-hidden down tube installation for a sleek and unobtrusive look.

Additional Information:

• Weight: Lightweight design for ease of handling and installation.
• Power Connector: Equipped with a 6-pin connector for reliable and secure power transmission.
• Charger: Comes with a 42V 2A charger, ensuring efficient and effective charging.

The Belicore 36V lithium battery is designed for e-bike enthusiasts looking for a reliable and high-capacity battery option. Its compact design, along with compatibility with various motor types, makes it a versatile choice for enhancing your e-bike's performance.

Battery Manual

Charging and Discharging

1. Charge: Connect the battery pack to the charger and then to the charge controller to recharge.
2. Discharge: Connect the battery pack to the load and the load to discharge the battery.

Safety and Maintenance

3. Combining Batteries: When combining batteries in series or parallel, brush the surface to remove any oxidation and minimize resistance.
4. Voltage Safety: If the voltage between two electrodes exceeds 24V, avoid touching them to ensure safety.
5. Long-Term Storage: For long-term storage, keep the battery at 80% charge. Recharge and discharge every three months.
6. Exposure: Do not expose the battery to extreme heat or flame.
7. Avoid Damage: Do not short circuit, over-charge, or over-discharge the battery pack.
8. No Disassembly: Do not disassemble or modify the battery pack.
9. Avoid Metallic Objects: Do not handle or store with metallic objects such as necklaces, coins, or hairpins.
10. Polarity: Never reverse the polarity of the battery pack.
11. Water Immersion: Do not immerse the battery pack in water or any liquid.
12. Charger Type: Use a constant current, constant voltage (CC/CV) lithium-ion battery charge controller.

FAQ

1. Compatibility:

   • Compare the battery's appearance and dimensions with your old battery.
   • Ensure the voltage of the new battery matches your motor (e.g., 36V, 48V, or 60V).

2. Battery Type:

   • Lithium-ion battery with LiCoMnO2 chemistry.

3. Single Cells:

   • Uses A-grade cells from Samsung, Panasonic, Sanyo, LG, or high-power Chinese brands.
   • Standard capacities include 18650 (2600mAh, 2900mAh, 3000mAh, 3200mAh, 3500mAh) and 21700 (4800mAh, 5000mAh).

4. Battery Comparison:

   • Lithium-ion batteries have a longer cycle life (over 1000 cycles), are lighter, smaller, and environmentally friendly compared to Ni-MH and Lead Acid batteries.

5. Temperature Range:

   • Charge Temperature: 0°C to 45°C
   • Discharge Temperature: -20°C to 65°C

6. Charger Included:

   • Yes, standard chargers are included. Fast chargers are available upon request.

7. BMS:

   • Yes, all batteries come with a high-quality SEIKO IC BMS for protection against short circuits, overcharging, over-discharging, and over-current.

8. OEM and ODM Services:

   • Yes, OEM and ODM services are available. Custom designs and requirements are welcome.

After-Sales Service and Warranty

1. Warranty: 18 months for all e-bike batteries.
2. Defective Battery within One Month: We will send a replacement after receiving proof of defect.
3. Defective Battery within One Year: Free repairs are provided.
4. Testing: All batteries are 100% tested before shipping.

Exclusions

We do not provide warranty for:

1. Credit card rejection orders.
2. Water-damaged batteries.
3. Batteries damaged by user negligence.
4. Failure to follow the user manual.
5. Batteries damaged by incorrect use.
6. Unwarranted returns.
7. Disputes without prior communication.

Feedback

• We appreciate your 5-star feedback.
• If satisfied, please leave a 5-star rating.
• For issues, contact us to resolve the problem before leaving feedback.

This manual ensures safe and proper use of your battery and provides clear guidance on maintenance, compatibility, and support.
