SPECIFICATIONS

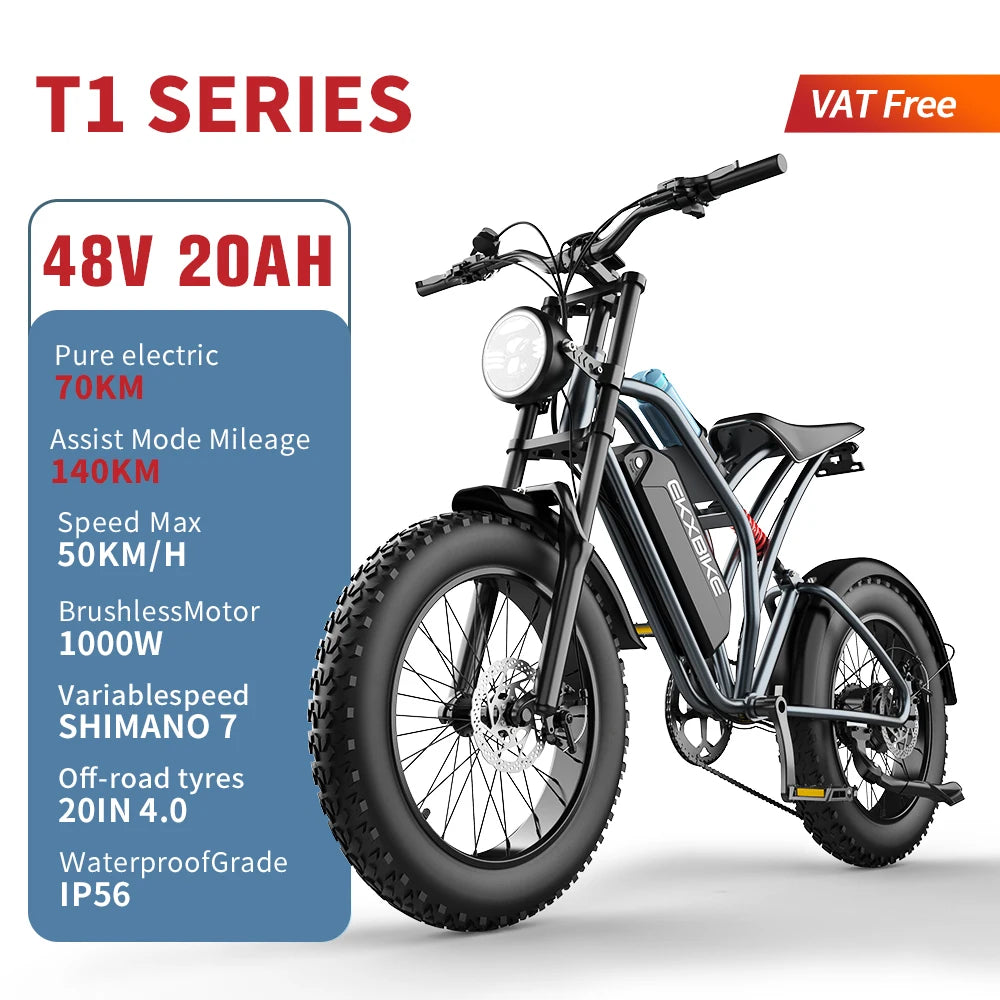

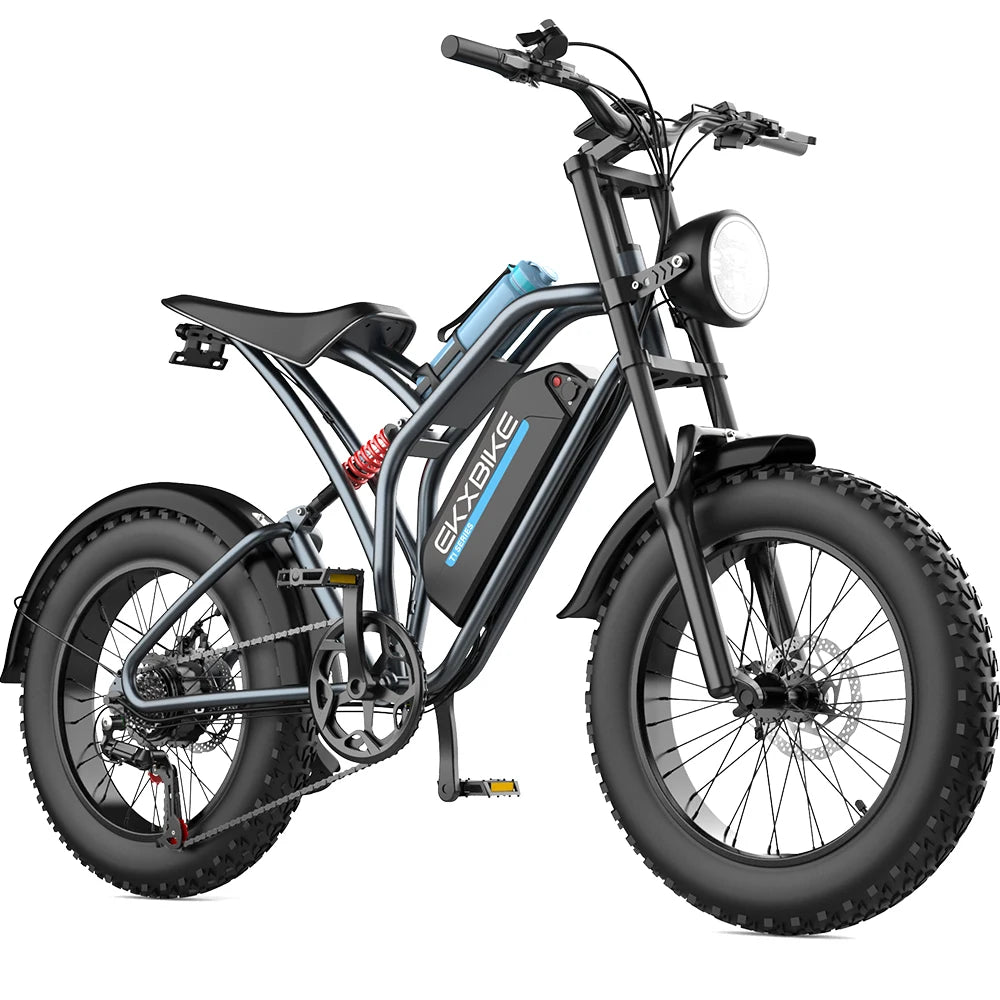

Mountain 20" 4.0 Fat Tires Electric Bike

Overview

The Mountain 20" 4.0 Fat Tires Electric Bike is a high-performance e-bike designed for adventurous rides and rugged terrains. With its robust construction and powerful motor, this bike is built to handle a variety of conditions, offering both luxury and functionality.

Specifications:

• Model Number: EKX T1
• Brand Name: Mountain 20" 4.0 Fat Tires
• Voltage: 48V
• Wattage: 1000W
• Motor Type: Brushless
• Power Supply: Lithium Battery
• Battery Capacity: 20AH
• Range: 60 km (37 miles) per charge
• Max Speed: 30-50 km/h (18-30 MPH)
• Frame Material: Steel
• Wheel Size: 20” x 4.0” CHAOYANG
• Load Capacity: 150 kg (330 lbs)
• Waterproof Level: IP56
• Slope Capability: Up to 30°
• Charging Time: 3-4 hours
• Overcurrent Protection: 22A
• Undervoltage Protection: 39V
• Dimensions (Expanded): 172 cm x 115 cm x 68 cm (67.7” x 45.2” x 26.7”)
• Weight: Approximately 34 kg (75 lbs)

Key Features:

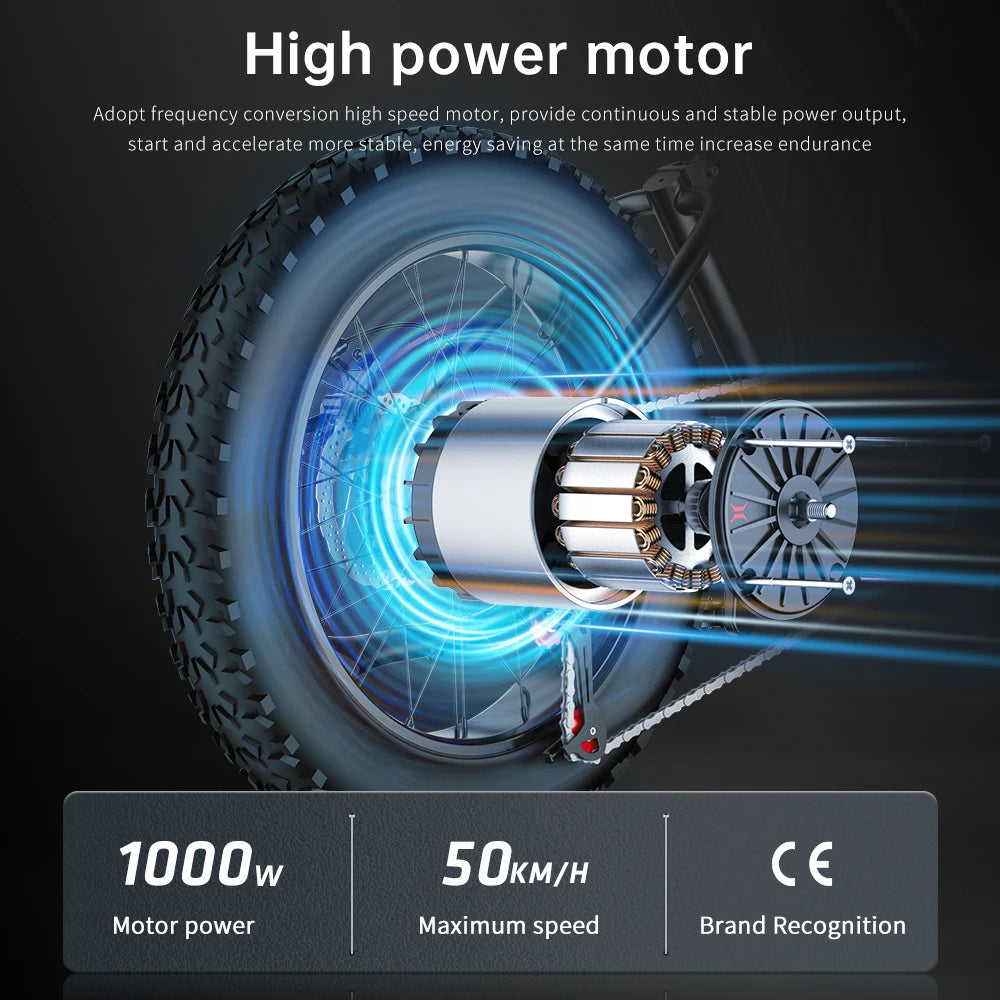

• High-Powered Motor: Equipped with a 1000W brushless motor, offering strong performance and the ability to handle challenging terrains.

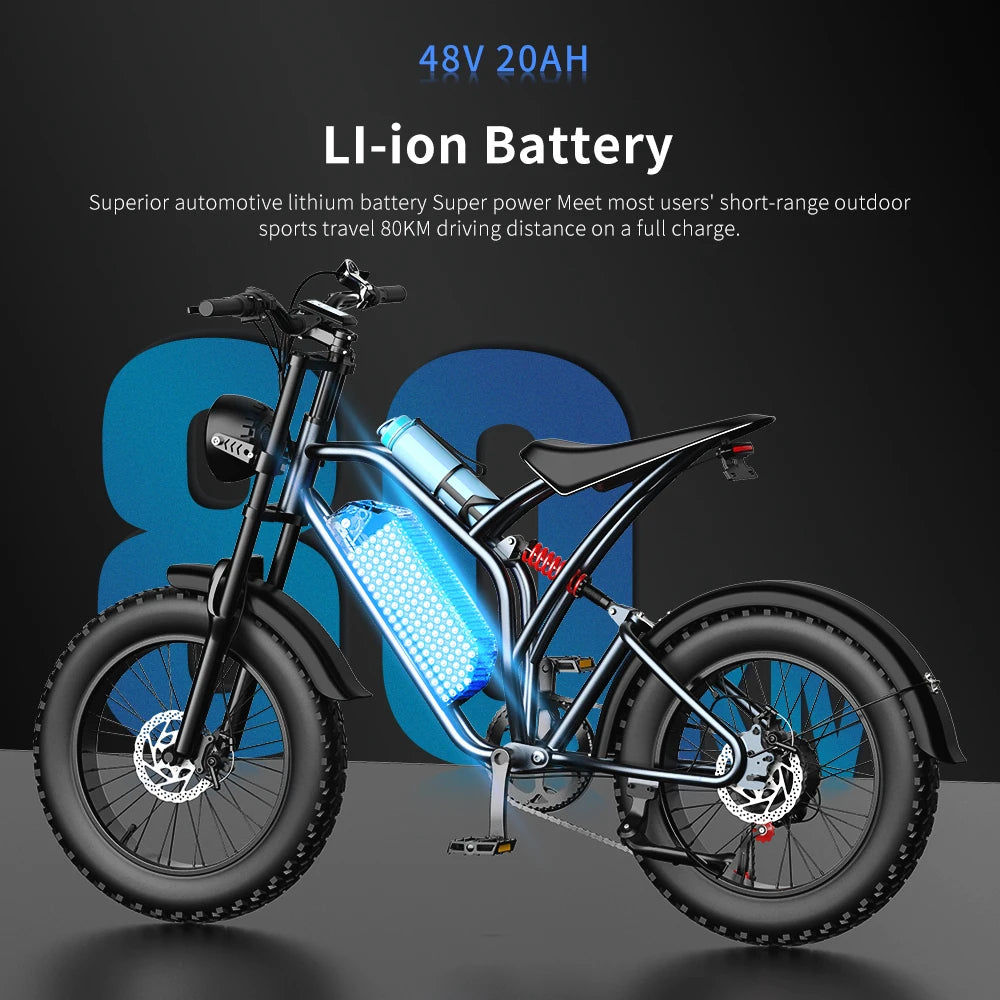

• Large Capacity Battery: The 20AH lithium battery provides extended range, perfect for long rides and outdoor adventures.
• Comfortable Suspension: Features a front springer fork and rear spring shock absorber to smooth out rough paths and enhance riding comfort.

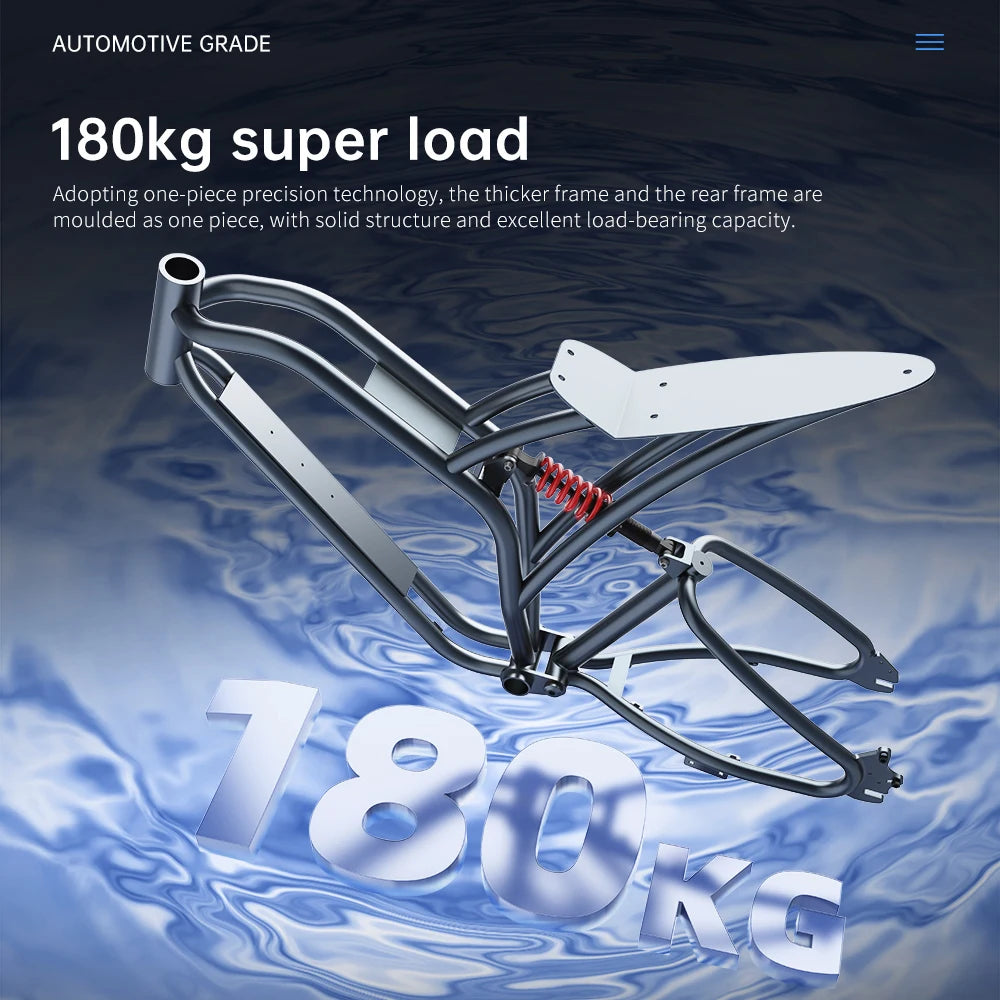

• Durable Construction: The steel frame ensures robustness and reliability, even under heavy loads.
• Fat Tires: 20” x 4.0” CHAOYANG tires designed for excellent traction and stability on various surfaces.
• Advanced Display: DP169-1-48V display for monitoring speed, battery level, and other critical data.
• Multiple Riding Modes: Adapt to your riding needs with different modes including pure electric, pedal-assist, and manual riding.

Additional Information:

• Foldable: No
• Style: Luxury Type
• Certification: CE

Included in the Package:

• Electric Bike
• Lithium Battery
• Charger
• User Manual

Delivery Information:

• Shipping Time: Typically ships within 24 hours of order placement.
• Warranty: One-year warranty on major components, with optional purchase of spare parts.

Contact and Support:

For further assistance or inquiries, please reach out to customer support.

The Mountain 20" 4.0 Fat Tires Electric Bike is designed to deliver exceptional performance, making it an ideal choice for those who seek adventure and reliability in their e-bike.
