    NoEnName_Null Lithium Battery for Folding Electric Bicycle

    NoEnName_Null Lithium Battery for Folding Electric Bicycle

    SKU: 14:200006153#48v10.4AH L390;200007763:201336100

    Price: $579.99
    List Price: $1,158.99
    Price: $579.99
    You Save: $579.00 (50%)
    Color
    Ships From
    Why Buy From NaturiStore

    SPECIFICATIONS



    NoEnName_Null Lithium Battery for Folding Electric Bicycle

    Key Specifications:

    • Type: Lithium-ion battery
    • Certification: RoHS
    • Voltage: 48V
    • Capacity: 10Ah - 20Ah
    • Cell Type: Panasonic, Li(NiCoMn)O2 chemistry
    • Cycle Life: ≥1000 Cycles
    • Compatible Motors: 250W, 350W, 500W, 750W, 1000W
    • Fit Motor Brands: Bafang, Tongsheng
    • Compatible E-bike Models: Aventon Pace 500, Eahora AM100, AM200
    • Battery Type: Inner Tube Hidden Battery for Folding E-Bikes
    • Available Capacities: 12Ah, 14Ah

    Product Features:

    • Fast Delivery: Ships within 7-10 days via air
    • Shock & Water Resistance: IP65 water-resistant ABS PC shell ensures durability for outdoor conditions.

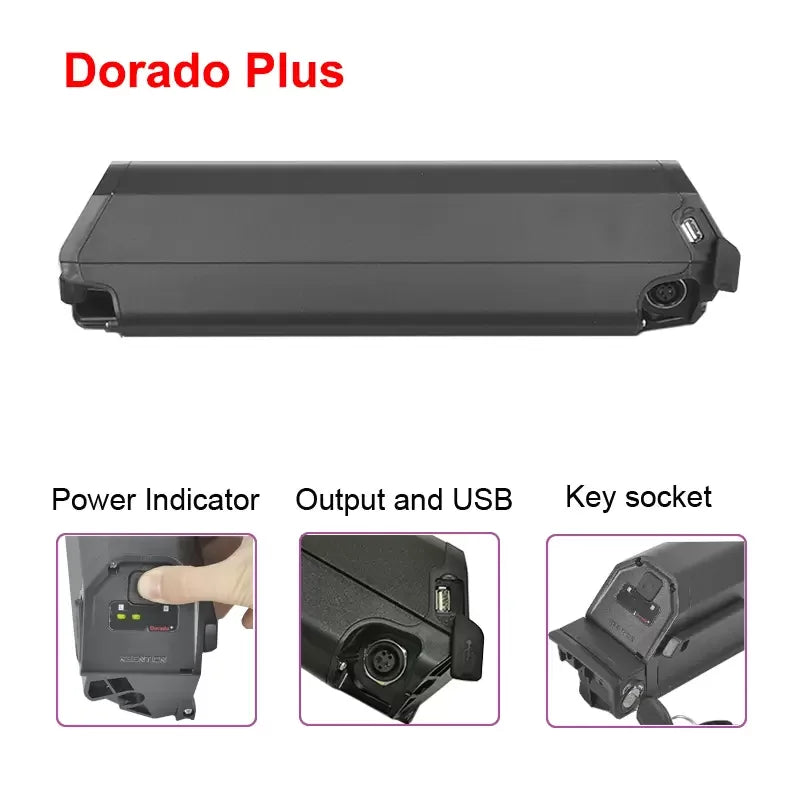

    • Practical Design:
      • LED Power Indicator: Alerts for timely charging.
      • Safe Lock: Prevents battery theft.
      • USB Port: For charging mobile devices outdoors.
      • Easy Installation: Includes base for convenient mounting.

    Battery Management System (BMS):

    • Built-in 30A BMS protects against overcharge, over-discharge, overcurrent, overvoltage, and short circuits.
    • Extends battery life to up to 800-1000 cycles (~5 years).

    Technical Parameters:

    Model 48V 10.4Ah 48V 12.8Ah 48V 14Ah
    Cell Capacity 2600mAh 3200mAh 3500mAh
    Composition 13S4P 13S4P 13S4P
    Weight 4.5kg 4.5kg 4.5kg
    BMS Current 30A 30A 30A
    Fit Motor Power 48V 500W - 1000W

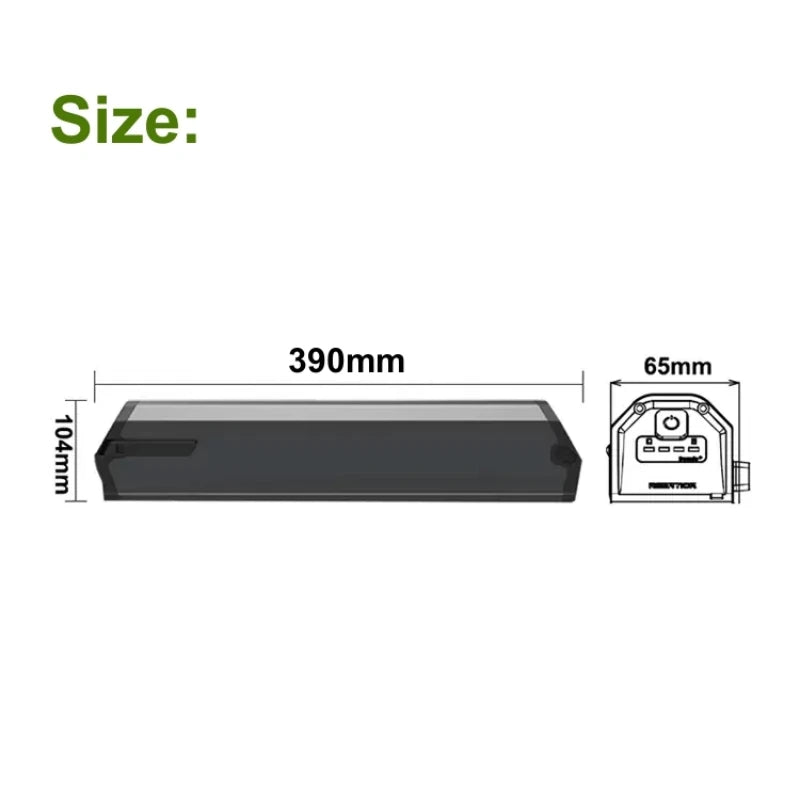

    Size 390 x 104 x 65mm
    Standard Charge Constant current 0.2C, constant voltage 54.6V 100mA cut-off
    Fast Charge Constant current 0.5CA, constant voltage 54.6V 100mA cut-off
    Standard Discharge Constant current 0.2C, end voltage 39V
    Peak Discharge Current 30A or customized
    Operating Temperature -10°C to 40°C

    Optional Customizations:

    • Charger Plug: Available in US, EU, UK, AU standards based on delivery region.
    • Discharge Connector: 7 different options available; if unspecified, default connectors are provided.

    Warranty & After-Sale Service:

    • 1-Month Free Return: Except in cases where the wrong battery is ordered.
    • 12-Month Quality Assurance: Full responsibility for quality issues with timely feedback.

    Important Notes:

    • Safety First: Use a specialized smart Li-ion charger and handle batteries with care to avoid hazards.
